The Red Spot
A local intervention on NYU Abu Dhabi's Highline

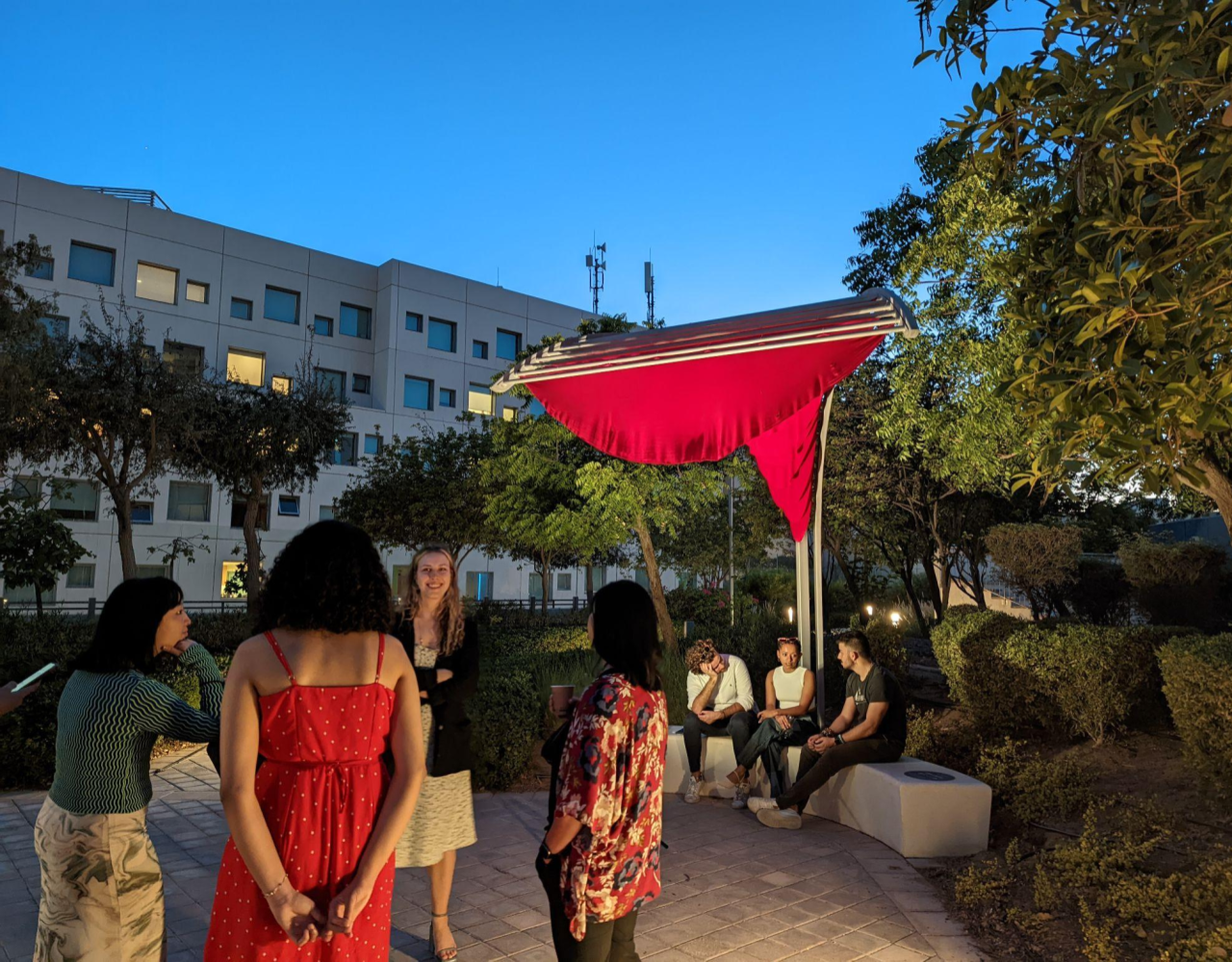

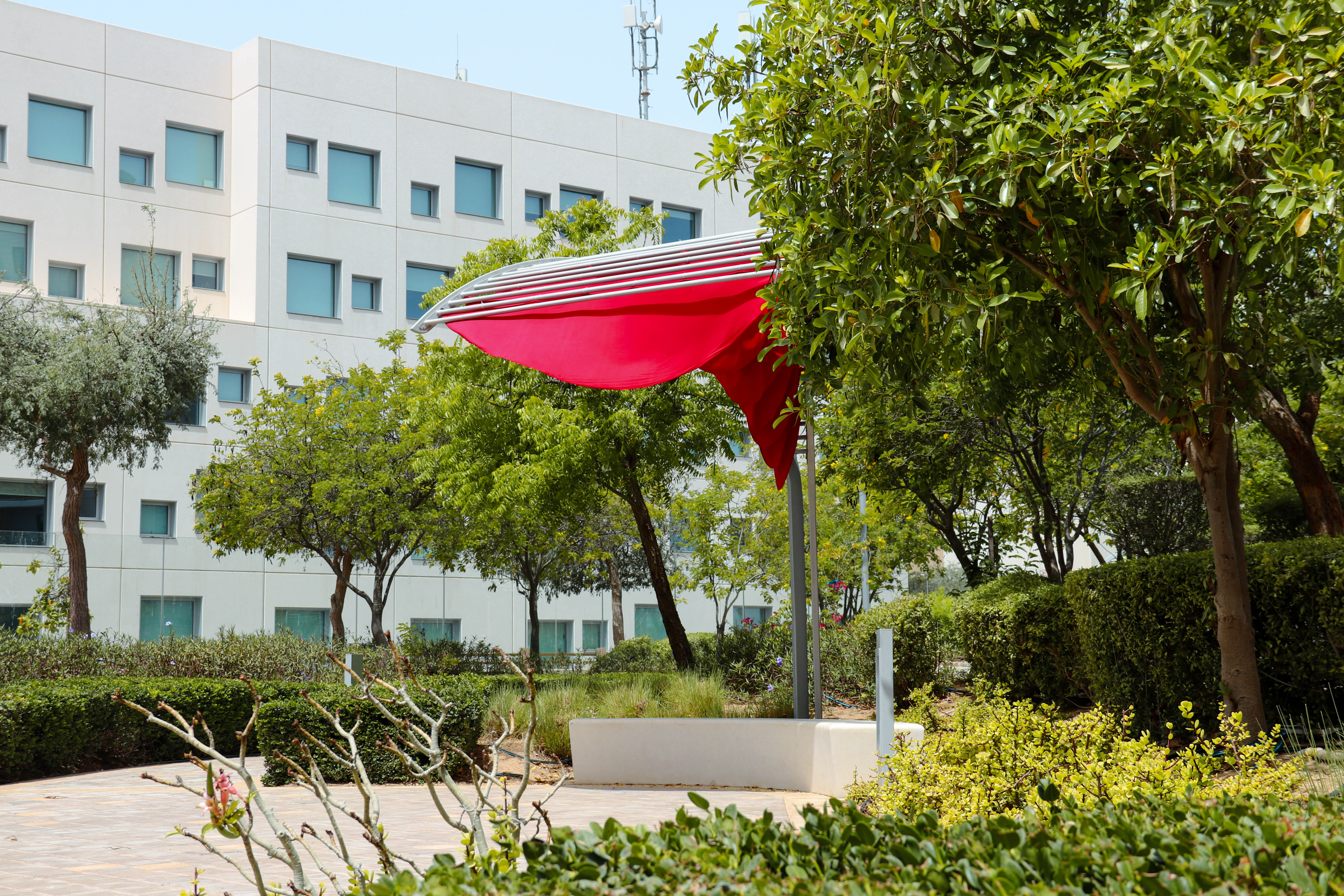

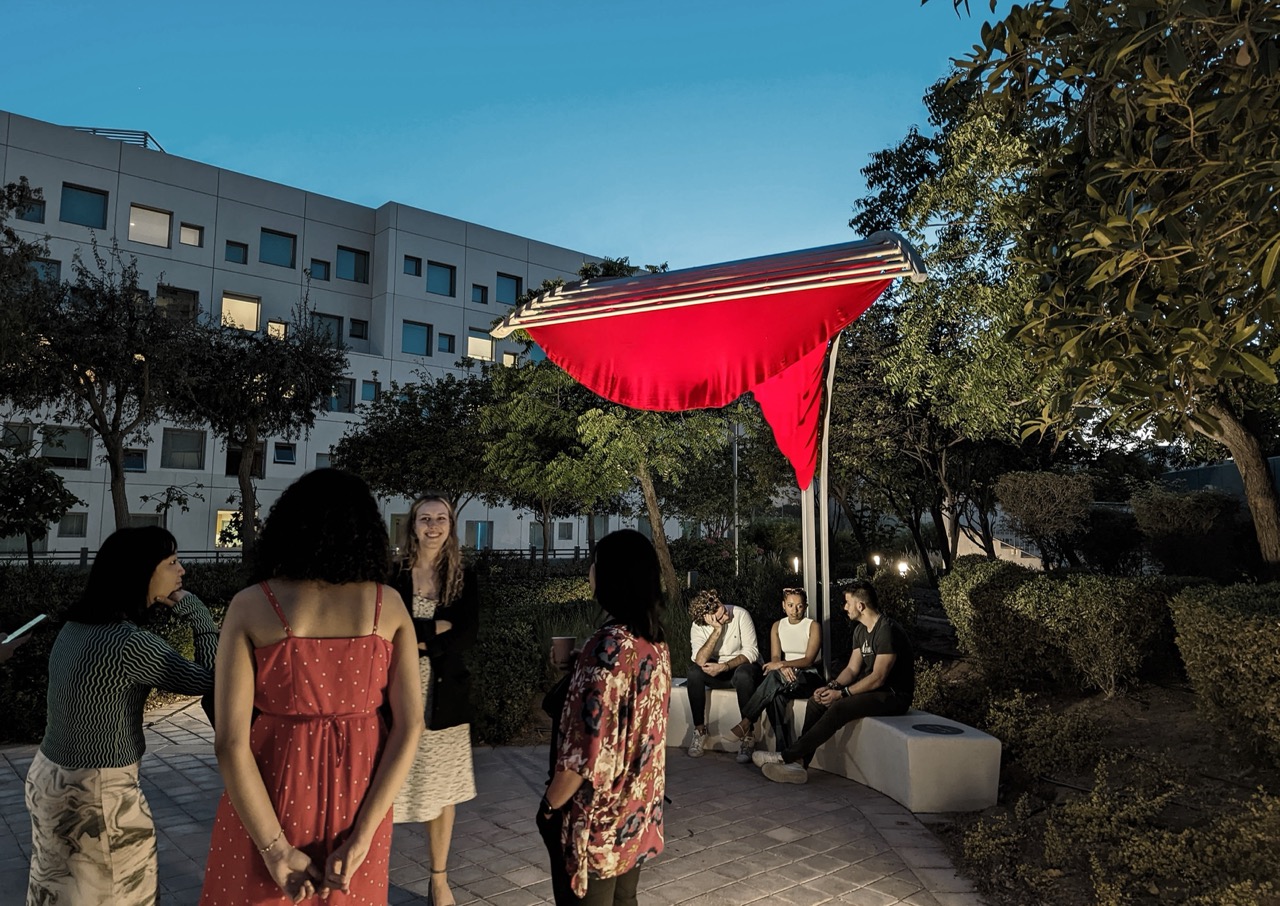

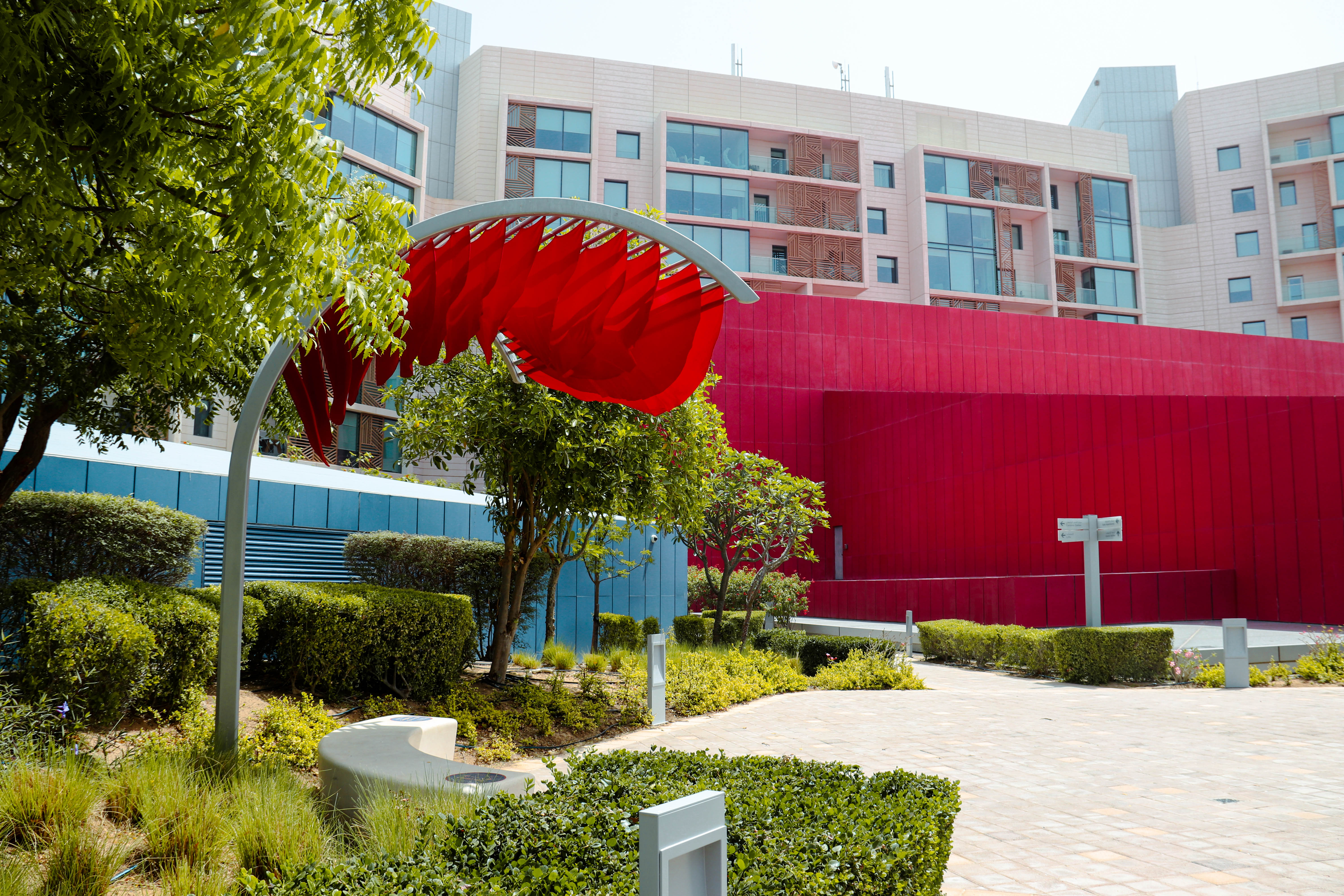

The Red Spot is a dynamic intervention piece that makes use of metal structures on the highline park of New York University Abu Dhabi. Fabric pieces were designed to create volume, maximize shade, and interact with the wind. The installation is able to provide shading to revive the outdoor space on campus. A prototype was funded, created, and proposed to NYU Abu Dhabi’s administration.
A Hyperlocal Response

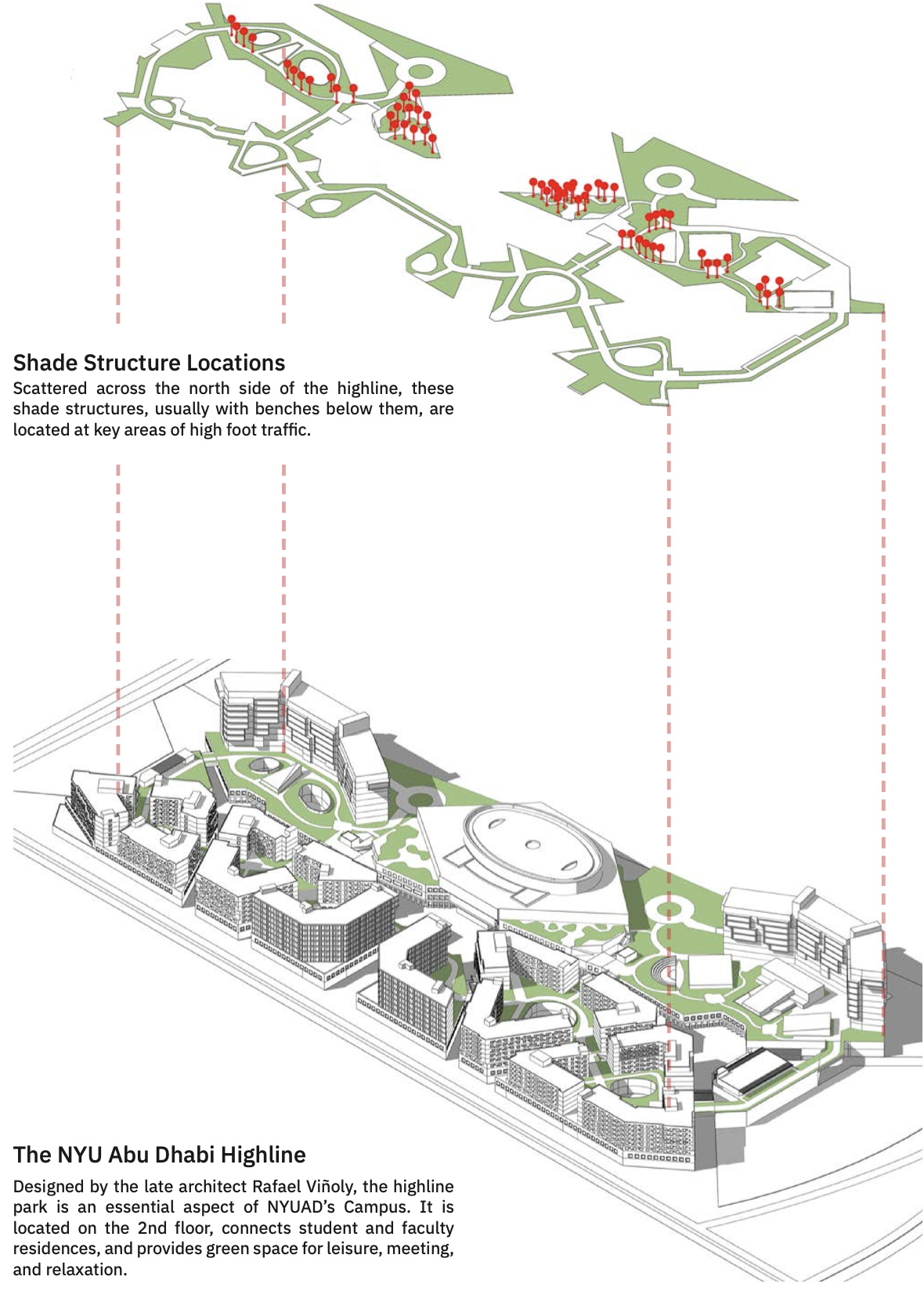

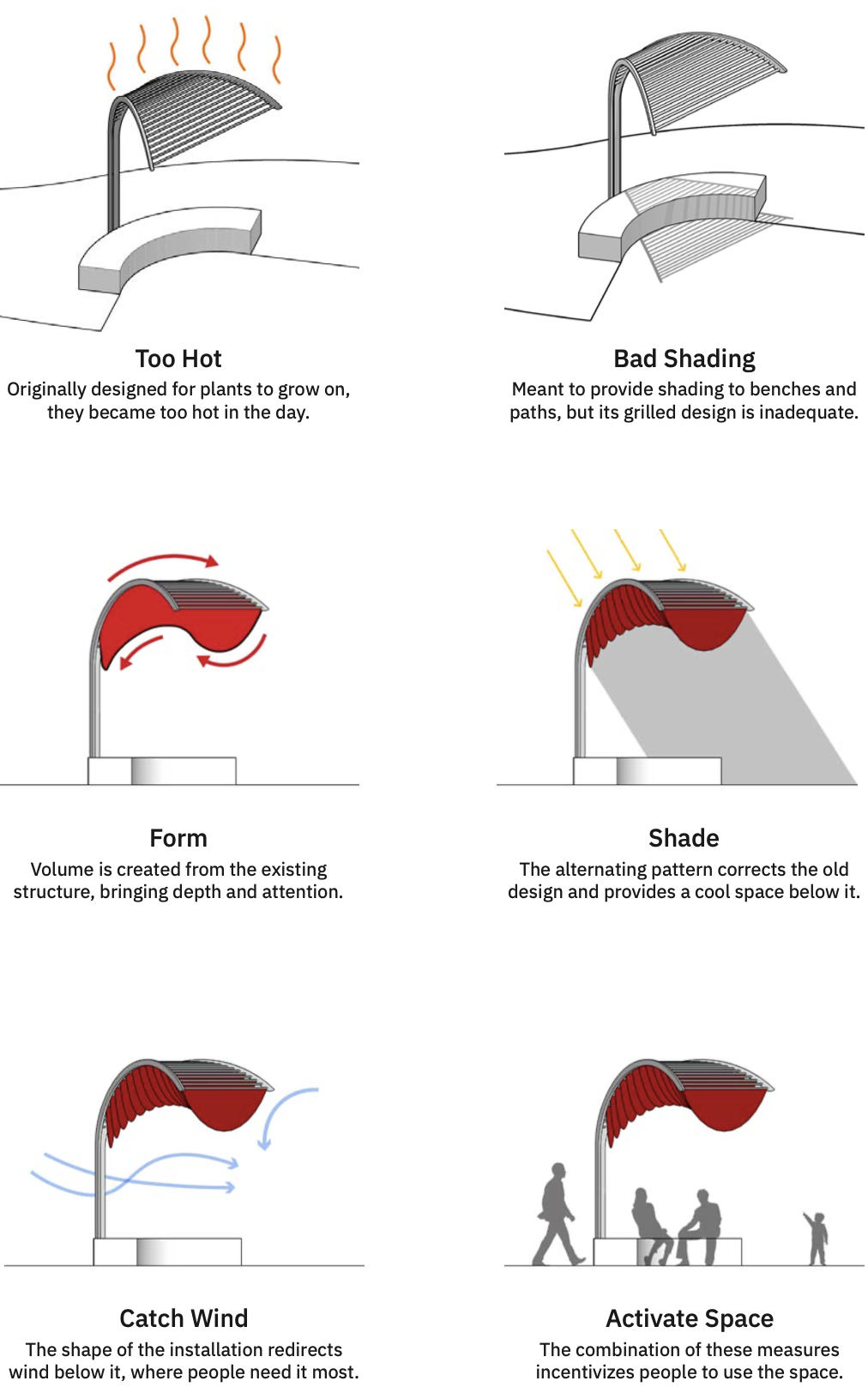

Form

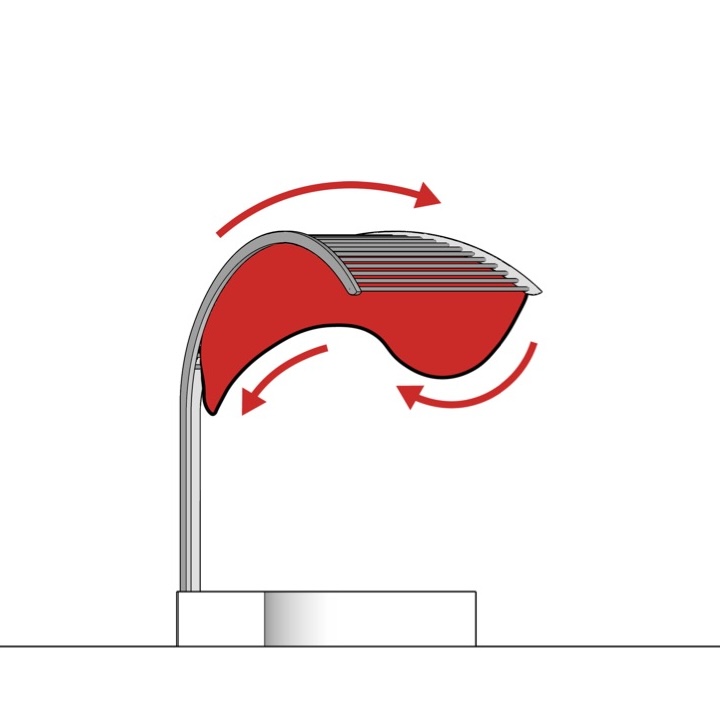

Volume is created from the existing structure, bringing depth and attention.
Shade

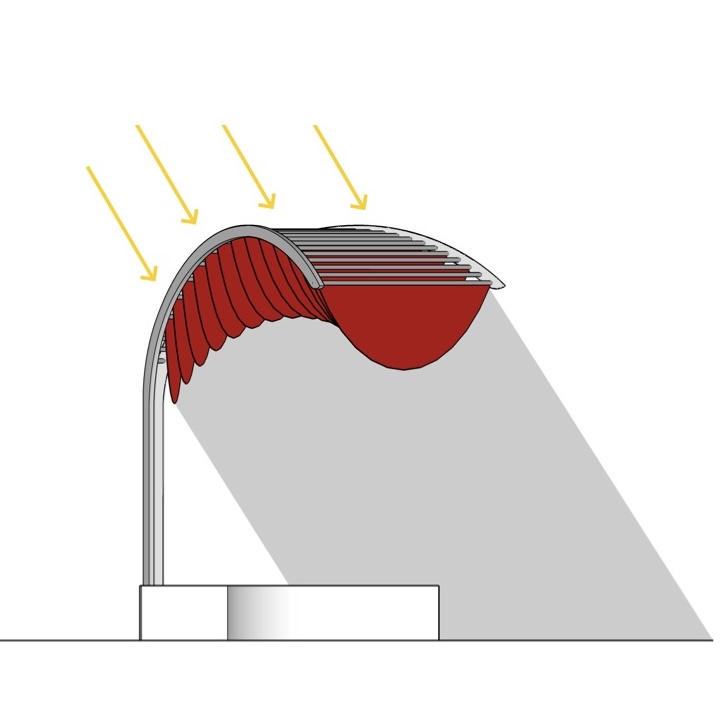

The alternating pattern corrects the old design and provides a cool space below it.
Catch Wind

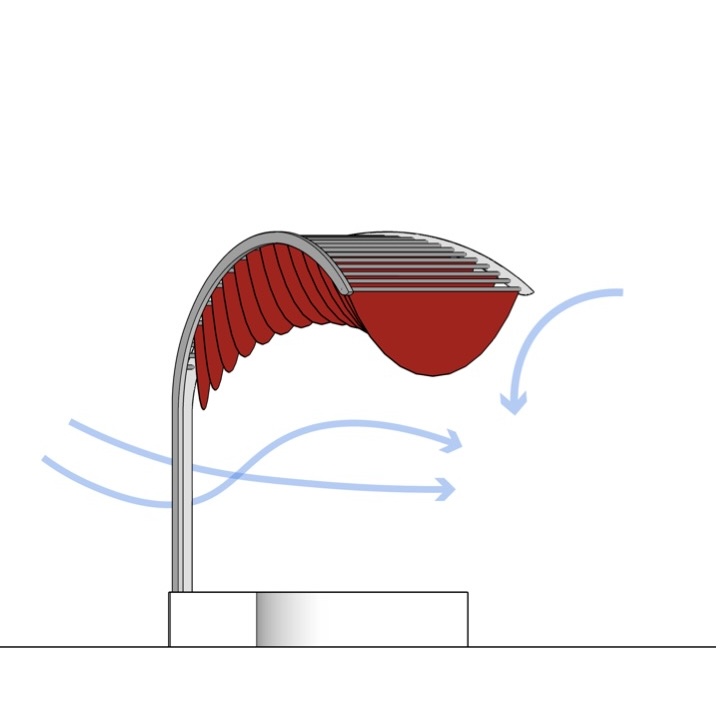

The shape of the installation redirects wind below it, where people need it most.
Activate Space

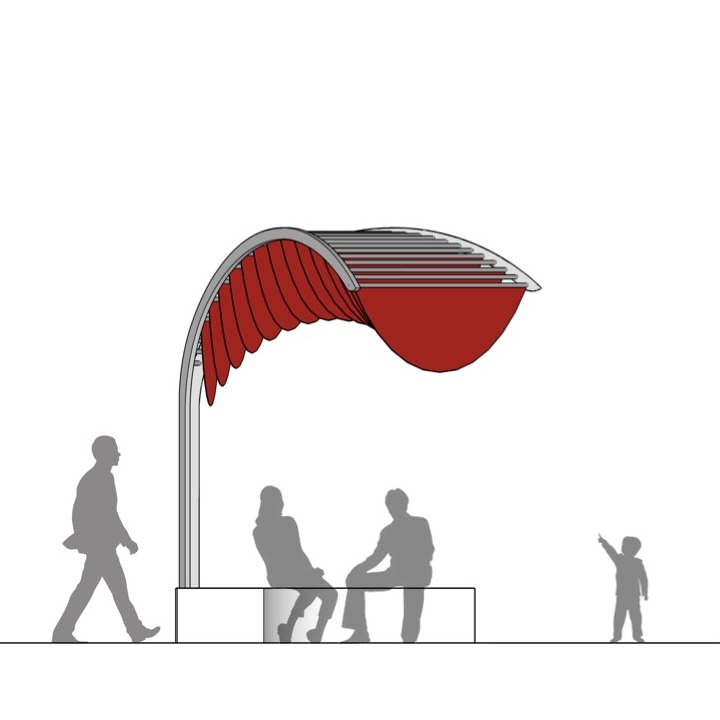

The combination of these measures incentivizes people to use the space.
Development and Fabrication

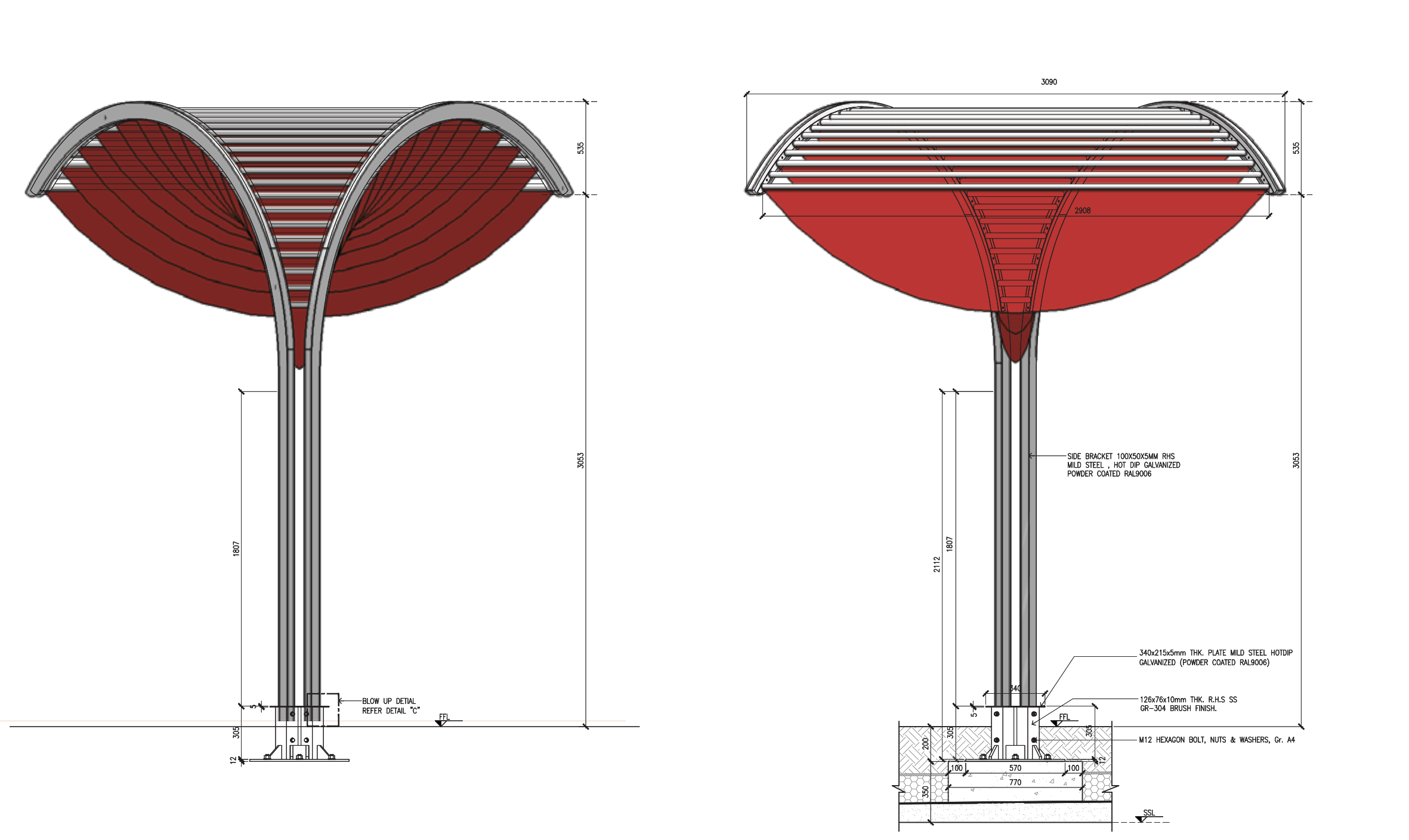

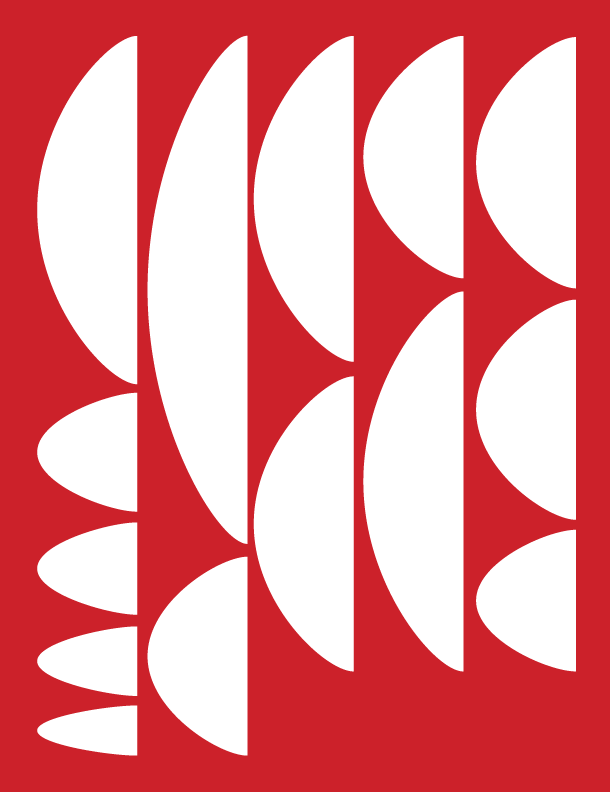

Installation Technical Drawings. The fabric addition to these shade structures consists of 14 parabolic shapes of various widths, but with the same height. This streamlines the fabrication process while conforming to the shape of the structures.

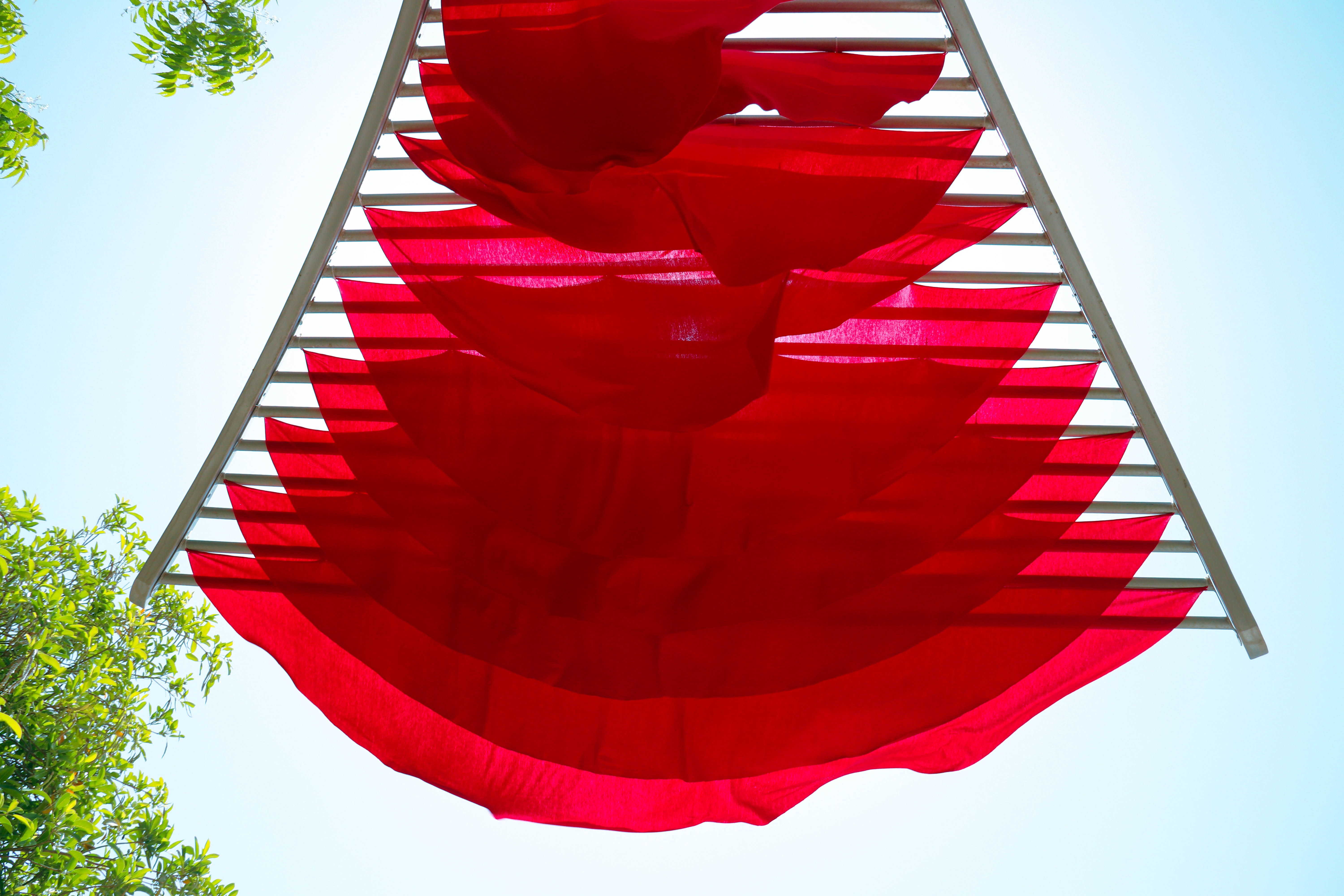

Each parabolic piece was fabricated by hand out of jersey fabric. This was done by creating templates for each of the 14 pieces with A3 sized paper. Chalk was then used to trace the shape, and then fabric shears were used to cut them out. The top of the fabric was folded several times and then punched with a hole puncher, where zip ties will be used to install them onto the existing shade structure. Afterwards, each individual piece was installed at alternating intervals.
